Clean Room Air Shower
In electronics, pharmaceuticals, biotechnology, food and new technology manufacturing, you rely on cleanrooms or controlled spaces to protect operations from the constant threat of air particulate contamination. THERMADYNE AIR SHOWER protects a cleanroom from contamination that could be brought into the cleanroom. The clean garments worn by cleanroom personnel become contaminated during the gowning/ungowning process and must be cleaned before they enter the clean environment.
Clean Room Air Shower
Not all air showers are made alike, and not all air showers perform alike in every situation. Only THERMADYNE AIR SHOWER combines high-quality all-metal construction with the highest performance, customized options and versatile configurations. The Clean Air Products design advantage makes for easy installation and maintenance of all the air showers. THERMADYNE AIR SHOWER delivers maximum efficiency and value for your cleanroom and controlled environment.

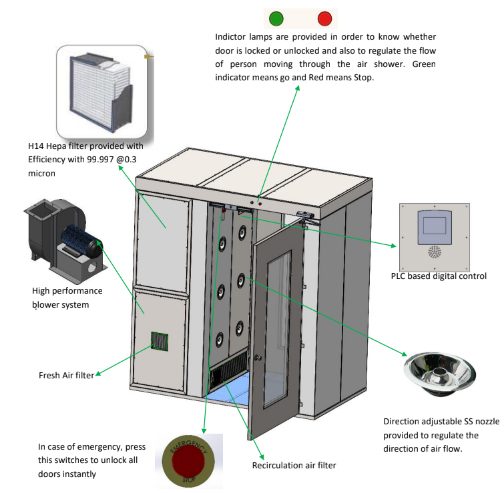

Key Benefits Of Air Shower
Enhance cleanliness and contamination control with efficient particulate removal using our air showers.
Air shower with ISO class 5 (class100)
PLC based control with different operating mode
Direction adjustable nozzles
Durable heavy-gauge powder coated steel construction
Easy to maintain
Dynamically balanced blower
Electromagnetic interlocking
Indicator lights on both side of air shower to indicate the man movement
High velocity shower jet 5000-6000 fpm ensures efficient scrubbing action to remove particulate matter.
Zero leak, negative pressure reliability seal on HEPA filter gasket
LED lighting
Industry-leading customization options
Key Specifications
Below are the detailed specifications and performance matrix for our Air Shower
| Configuration | Space based Top mounted or Side mounted/Based on Entry & Exit (straight entry exit, L type). |
|---|---|
| Construction | GI/CRCA Powder coated ,SS304/316 |
| Face Velocity | 5000-6000ft/min |
| Operation Time (Adjustable ) | 0-9990 seconds |
| Pre Filter | Washable pre-filter unit (Nonwoven- synthetic polyester) |
| Hepa Filters | Glass fiber H-13 with efficiency 99.97 @0.3micron & H-14 with efficiency 99.997 @0.3micron |
| No. of Nozzles | 13No. For AS103 & 19NO. For AS106 |
| Air Flow | Multi Directional |
| Air flow Control | PLC Based |
| Blower Assembly | Dynamically balanced centrifugal blower |
| Electromagnetic Interlocking | yes |
| Illumination | LED light Illumination greater than 800 lux |
| Noise Levels | Noise level less than 65db at 1 meter |
| Power Requirements | 1100 watts -1500 watts (Model Specific) |
| Nominal Voltage | 415 Volts, 50 Hz, Three phase |
Construction Options
Explore the standard construction options our Air Showers
| Models | Recommended No. Persons | Top Mounted Models | Side Mounted Models | ||||
|---|---|---|---|---|---|---|---|
| W | D | H | W | D | H | ||
| AS 103 Over all outer Dimensions internal Dimensions. | 1-2 | 1525 | 915 | 2850mm | 2000 | 915 | 2250mm |
| 915 | 815 | 2050mm | 915 | 815 | 2050mm | ||
| AS 106 Over all outer Dimensions internal Dimensions. | 3-4 | 1525 | 1830 | 2850mm | 2000 | 1830 | 2250mm |
| 915 | 1730 | 2050mm | 915 | 1730 | 2050mm | ||
Customization Options
Tailor our solutions to your specific needs with our customization options for optimal performance
| Two door/ 3 doors showers with different Entry/ Exit arrangements | Air shower without doors | Air shower without floor | Solid/ grated floor | Air shower tunnel | Differential Pressure gauge | Inclined Tube Manometer | Doors with Floor Spring | Electronic Air Ionizer | Emergency light | Digital Timer |
|---|
