Bio Safety Cabinet

A Biosafety Cabinet (BSC) is an enclosed laboratory workspace for safely handling potentially contaminated or other hazardous materials requiring a pre- defined level of bio safety. Several different classes of biosafety cabinets exist, defined by the varying degrees of bio containment required. Several types exist within Class II, which is dictated by how much of the air passing through the work zone is exhausted or recirculated. By combining unidirectional airflow from the top of the workspace with air inflow from the room, a Class II BSC maintains a dynamic air barrier that protects scientific personnel and their products from contamination. All cabinets utilize High Efficiency Particulate Air (HEPA) or Ultra Low Particulate Air (ULPA) filters to maintain an aseptic environment within the workspace.

Key Benefits Of Bio Safety Cabinet

Explore the benefits of our Bio Safety Cabinet

BSC with ISO class 5 (class100)

PLC based control with digital differential pressure gauge, Hepa filters life indicator and alarm

Durable stainless steel construction

Easy to maintain

Energy efficient blowers

Aux power sockets

>500 lux Level in working area

Industry-leading customization options

UV stabilized polycarbonate side and front panels

Vibration:- 0.0001” average displacement on the work table

Automatic control for supply air FPM.

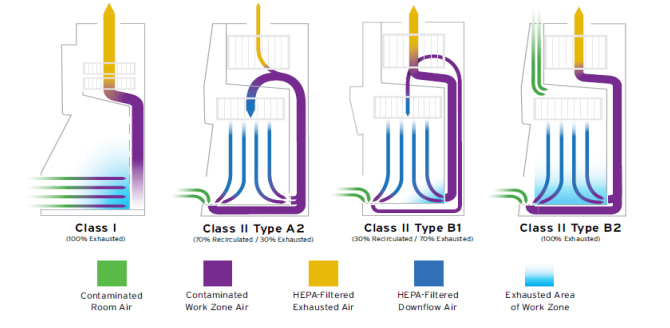

Common Classes and types of Biosafety Cabinets

Class I biosafety cabinets rely solely on a minimum of 75 fpm [0.38 m/s] inward airflow velocity for personnel protection. Class II BSCs provide product, personnel, and environmental protection by combining unidirectional down flow with high velocity inflow air to create a dynamic air barrier. Within class II, there are several different types based on which portions of the work zone are recirculated and/orbexhausted, as depicted above. Class III, usually installed
in maximum containment laboratories, are specifically designed to work with Biosafety Level 4 (BSL-4) pathogens and maintains a physical barrier between personnel and their products. Roughly 90% of all biological safety cabinets installed globally are Class II, Type A2

Key Specifications

Below are the detailed specifications of our Bio Safety Cabinet

ConfigurationClass 1, Class 2 type A2, Class 2 type B1, Class 2 type B2
ConstructionSS304/316
Air Barrier105 fpm [0.53 m/s] Dynamic Inflow, 125 fpm [0.30 m/s] True Laminar Downflow
Pre filterWashable pre-filter unit (Nonwoven- synthetic polyester)
Hepa filtersGlass fiber H-13 with efficiency 99.97 @0.3micron & H-14 with efficiency 99.997
@0.3micron
Air FlowLaminar air flow
ControlPLC Based
Blower AssemblyEnergy efficient dynamically balanced blower
IlluminationLED light Illumination greater than 800 lux on work table.
Noise levels<65db
Nominal Voltage220-230 Volts, 50Hz, Single phase

Standard Sizes

Choose from our range of standard sizes for quick and convenient solutions to fit your needs.

ModelsWorking Space
Width (w)Depth (W)Height (H)
BSC 103915610610
BSC 1041220610610
BSC 1061830610610
BSC 1082440610610

Get in Touch for Customized Solutions

Contact us now to find out how we can customize our filters for you.
