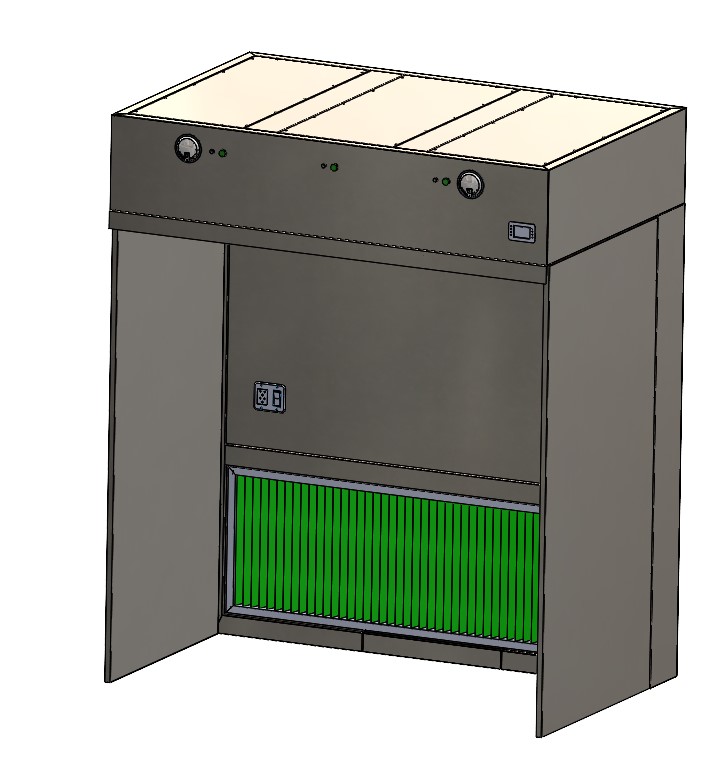

Dispensing / Sampling Station
Dispensing booth is a kind of laminar flow filtration cabin which is employed in dispensing,
sampling and weighing of powders and chemicals in pharma, biotech and chemical industries.
Such units work on reverse laminar flow working principle and provide protection to operators,
products / samples and surrounding environment. It is a Class 100 clean level unit with cross
contamination inhibition. The uniquely designed air duct effectively controls the noise. The
HEPA filters ensures minimum incorporation of fine dust into the plenum.
Key Benefits Of Dispensing / Sampling Station
Explore the benefits of our Dispensing / Sampling Station, including high dust capacity, extended filter longevity, and enhanced safety
Dispensing / Sampling station with ISO class 5 (class100)
PLC based control with digital differential pressure gauge, Hepa filter life indicator and alarm
Durable stainless steel construction
Easy to maintain
Energy efficient blowers
Aux power sockets
3 stage filtration
>800 lux Level in working area
Industry-leading customization options
Applications of Dispensing/Sampling Stations
Ensure precise and contamination-free dispensing and sampling with our advanced stations, designed for critical environments
- Drug Formulation
- Chemical Industry
- Product Dispensing
- Large Scale Powder weighing and dispensing
- Raw Material Dispensing
- Pharmaceutical Industry
- Food Industry
- Cosmetic Industry
Key Specifications
Below are the detailed specifications of our Dispensing / Sampling Station
| Configuration | Recirculatory type , Exhaust Type |
|---|---|
| Construction | SS304/316 |
| Velocity at 6” | 90 FPM ± 20% |
| Pre filter | Washable pre-filter unit (Nonwoven- synthetic polyester) |
| Hepa filters | Glass fiber H-13 with efficiency 99.97 @0.3micron & H-14 with efficiency 99.997 @0.3micron |
| Air Flow | Vertical Laminar air flow |
| Control | PLC Based |
| Blower Assembly | Energy efficient dynamically balanced blower |
| PVC curtains | Provided |
| Illumination | LED light Illumination greater than 800 lux on work table. |
| Noise levels | <65db at 1 meter |
| Nominal Voltage | 220-230 Volts, Single phase, 50Hz |
Standard Sizes
Choose from our range of standard sizes for quick and convenient solutions to fit your needs.
| Models | Working Space | ||
|---|---|---|---|
| Width (W) | Depth (D) | Height (H) | |
| 104x3 | 4’ | 3’ | 6.5’ |
| 104x4 | 4’ | 4’ | 6.5’ |
| 106x4 | 6’ | 4’ | 6.5’ |
