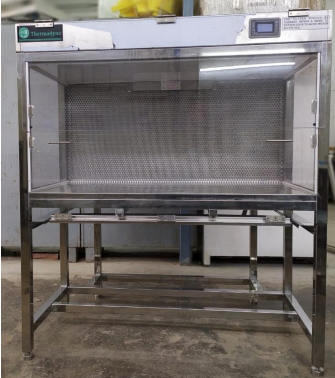

Horizontal Modular Laminar
“ISO Class 5” THERMADYNE Horizontal laminar flow workstations which represent far more economical and valid alternatives to clean-rooms, as they are capable of providing uncontaminated, particle-free and sterile conditions for materials in the work-space. They guarantee and maintain excellent product protection factors by offering a decontaminated working area by virtue of the pre-filter and the HEPA filter with an efficiency better than 99.995 % MPPS (H14 –EN:1822).
THERMADYNE Horizontal laminar flow (HML) workstations is must for providing ultra clean work area for semi conductor manufacturing, pharmaceutical filling and capping , electronic & mechanical precision assemblies , analytical test labs etc. manufactured to international standards, these units incorporate D.O.P tested & point to point scanned Hepa filters .
Key Benefits Of Horizontal Modular Laminar
Explore the benefits of our Horizontal Modular Laminar

HML with ISO class 5 (class100)

PLC based control with digital differential pressure gauge, Hepa filter life indicator and alarm

Durable stainless steel construction

Easy to maintain

Energy efficient blowers

Aux power sockets

>800 lux Level in working area

Industry-leading customization options

UV stabilized polycarbonate side and front panels

Vibration:- 0.0001” average displacement on the work table
Applications of Horizontal Modular Laminar
Ensure precise and contamination-free Horizontal Modular Laminar with our advanced stations, designed for critical environments
• Optical Assembly
• Microscopy Analysis
• Critical Sample Preparation
• Pharmaceutical Preparation
• Tissue Culture
• Microelectronic Fabrication and Assembly
• Electronics instrument Assembly
• PCB Manufacturing
• Biotechnology

Key Specifications
Below are the detailed specifications of our Horizontal Flow Laminar Flow Bench
Configuration for filter sizes | Standard flow, Reverse air flow |
---|---|
Construction | SS304/316 |
Velocity at 6” | 90 FPM ± 20% |
Pre filter | Washable pre-filter unit (Nonwoven- synthetic polyester) |
Hepa filters | Glass fiber H-13 with efficiency 99.97 @0.3micron & H-14 with efficiency 99.997 @0.3micron |
Air Flow | Laminar air flow |
Control | PLC Based |
Blower Assembly | Energy efficient dynamically balanced blower |
Illumination | LED light Illumination greater than 800 lux on work table. |
Noise levels | <65db |
Nominal Voltage | 220-230 Volts, 50HZ single phase |
Standard Sizes
Choose from our range of standard sizes for quick and convenient solutions to fit your needs
Models | Working space | ||
---|---|---|---|
Width | Depth | Height | |
HML103 | 915 | 610 | 610 |
HML104 | 1220 | 610 | 610 |
HML106 | 1830 | 610 | 610 |
HML108 | 2440 | 610 | 610 |
