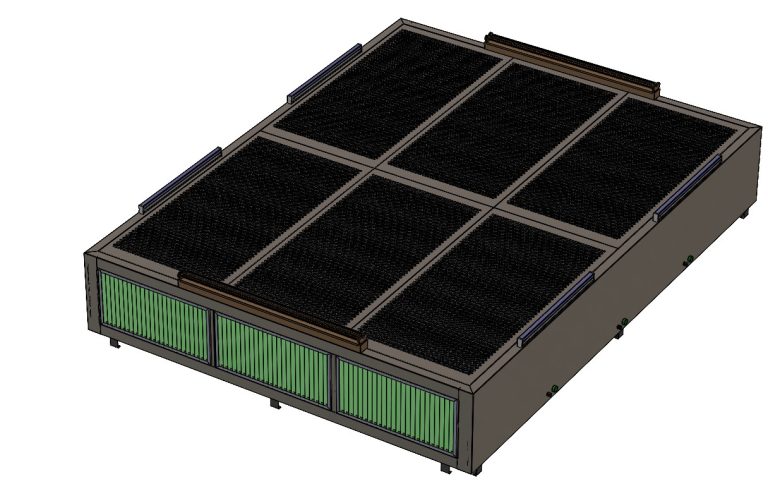

Vertical Hanging Laminar
Vertical Hanging Laminar (VHL) unit is a containment equipment module utilizing a zoned unidirectional (laminar) downflow supply of air to positively pressurize and purge the working environment from potential contaminants; thereby providing enhanced aseptic work zones for maintaining process integrity and/or product protection.
THERMADYNE Vertical Hanging laminar (VHL) workstations is must for providing ultra clean work area for semi conductor manufacturing, pharmaceutical filling and capping , electronic & mechanical precision assemblies, analytical test labs etc. manufactured to international
standards, these units incorporate D.O.P tested & point to point scanned Hepa filters .
Key Benefits Of Vertical Hanging Laminar
"Explore the benefits of our Vertical Hanging Laminar Flow
VHL with ISO class 5 (class100)
PLC based control with digital differential pressure gauge, Hepa filter life indicator and alarm
Durable stainless steel construction
Easy to maintain
Energy efficient blowers
Industry-leading customization options
UV stabilized polycarbonate side 1 feet drop
Applications of Vertical Hanging Laminar Flow Units
Achieve contaminant-free air zones with our vertical hanging laminar flow units, ideal for cleanrooms and critical environments.
• Optical Assembly
• Filling Line System ISO Class 5 coverage
• Pharmaceutical Preparation
• Nanotechnology
• Space Industry
• Microelectronic Fabrication and Assembly
• Electronics instrument Assembly
• PCB Manufacturing
• Biotechnology
• Space Industry
Key Specifications
Below are the detailed specifications of our Vertical Hanging Laminar Flow
| Configuration | Standard down flow, Reverse air flow |
|---|---|
| Construction | SS304/316 |
| Velocity at 6” | 90 FPM ± 20% |
| Pre filter | Washable pre-filter unit (Nonwoven- synthetic polyester) |
| Hepa filters | Glass fiber H-13 with efficiency 99.97 @0.3micron & H-14 with efficiency 99.997 @0.3micron |
| Air Flow | Laminar air flow |
| Control | PLC Based |
| Blower Assembly | Energy efficient dynamically balanced blower |
| Illumination | LED light Illumination greater than 800 lux |
| Noise levels | <68db at 1 meter |
| Nominal Voltage | 220-230 Volts, 50HZ single phase |
Standard Sizes
Choose from our range of standard sizes for quick and convenient solutions to fit your needs
| Models | Working space | ||
|---|---|---|---|
| W | D | H | |
| VHL103 | 915 | 610 | 400 |
| VHL104 | 1220 | 610 | 400 |
| VHL106 | 1830 | 610 | 400 |
| VHL108 | 2440 | 610 | 400 |
