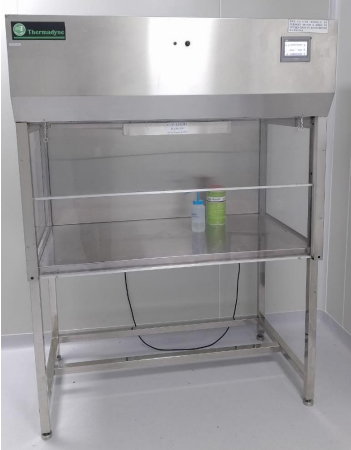

Vertical Modular Laminar
THERMADYNE Vertical laminar flow (VML) workstations is must for providing ultra clean work area for semi conductor manufacturing, pharmaceutical filling and capping , electronic & mechanical precision assemblies , analytical test labs etc. Manufactured to international standards, these units incorporate D.O.P tested & point to point scanned Hepa filters . A vertical laminar flow system directs the vertical laminar flow into a downward filter located on top of the working chamber above the operative surface. It emphasizes gravitational impact and moves the flow via the front access area to remove the particles. The mass of emerging contaminants (ECs) or micro-pollutants is not always sufficient. The vast majority of particles are removed from the box with the help of the airflow, and some of them land on the enclosure surfaces that can easily be disinfected.
Key Benefits Of Vertical Modular Laminar
Explore the benefits of Vertical Modular Laminar

VML with ISO class 5 (class100)

PLC based control with digital differential pressure gauge, Hepa filter life indicator and alarm

Durable stainless steel construction

Easy to maintain

Energy efficient blowers

Aux power sockets

>800 lux Level in working area

Industry-leading customization options

UV stabilized polycarbonate side and front panels

Vibration:- 0.0001” average displacement on the work table
Application of Vertical Modular Laminar
Ensure precise and contamination-free Vertical Modular Laminar with our advanced stations, designed for critical environments
• Optical Assembly
• Microscopy Analysis
• Critical Sample Preparation
• Pharmaceutical Preparation
• Tissue Culture
• Microelectronic Fabrication and Assembly
• Electronics instrument Assembly
• PCB Manufacturing
• Biotechnology

Key Specifications
Below are the detailed specifications of Vertical Modular Laminar
Configuration for filter sizes | Standard down flow, Reverse air flow |
---|---|
Construction | SS304/316 |
Velocity at 6” | 90 FPM ± 20% |
Pre filter | Washable pre-filter unit (Nonwoven- synthetic polyester) |
Hepa filters | Glass fiber H-13 with efficiency 99.97 @0.3micron & H-14 with efficiency 99.997 @0.3micron |
Air Flow | Laminar air flow |
Control | PLC Based |
Blower Assembly | Energy efficient dynamically balanced blower |
Illumination | LED light Illumination greater than 800 lux on work table. |
Noise levels | <65db |
Nominal Voltage | 220-230 Volts, 50HZ single phase |
Standard Sizes
Below are the standard sizes of Horizontal Modular Leminar
Models | Working space | ||
---|---|---|---|
Width | Depth | Height | |
VML103 | 915 | 610 | 610 |
VML104 | 1220 | 610 | 610 |
VML106 | 1830 | 610 | 610 |
VML108 | 2440 | 610 | 610 |
